Comprehensive Guide to Outside Drainage Channels: Types, Installation, and Maintenance

Outside drainage channels are indispensable components in both residential and commercial properties, serving a critical function in effective water management. These meticulously engineered systems are designed to collect and redirect excess surface water, whether it originates from heavy rainfall, melting snow, or routine irrigation. By actively preventing water accumulation, they safeguard properties from a myriad of potential issues, including flooding, soil erosion, and severe damage to building foundations. An efficient drainage system is not just a convenience; it’s a vital investment in the longevity, safety, and aesthetic appeal of your property.

This extensive guide delves into every facet of outside drainage channels. We will explore their diverse types, underscore their paramount importance, detail the installation process, outline essential maintenance practices, and provide practical solutions for common problems. Our aim is to equip you with a thorough understanding to ensure your property remains protected and your drainage system performs optimally, efficiently managing stormwater for years to come.

Key Takeaways:

Foundation Protection: Outside drain channels are crucial for preventing water accumulation, thereby protecting building foundations from structural damage and costly repairs.
Diverse Solutions: A wide range of outside drain channel types exists, each specifically engineered to address different drainage needs, water volumes, and property layouts.
Optimal Performance: Regular and proactive maintenance of these channels is absolutely essential for their continuous optimal performance, preventing blockages and extending their lifespan.
Tailored Installation: The installation process for drain channels varies significantly based on their type, the specific site characteristics, and the intended application, often benefiting from professional expertise.
Enhanced Safety: By keeping surfaces like walkways and driveways dry, these channels significantly enhance safety, reducing the risk of slips, falls, and vehicle hydroplaning.
Landscape Preservation: Effective drainage prevents soil erosion, preserves valuable landscaping, and protects hardscapes such as patios and driveways from water-related damage.

Understanding the Different Types of Outside Drain Channels

Choosing the right type of drainage channel is fundamental to the success of your water management system. Each design serves a specific purpose, catering to different volumes of water, aesthetic preferences, and load-bearing requirements. Understanding these distinctions is crucial for selecting the most effective solution for your property.

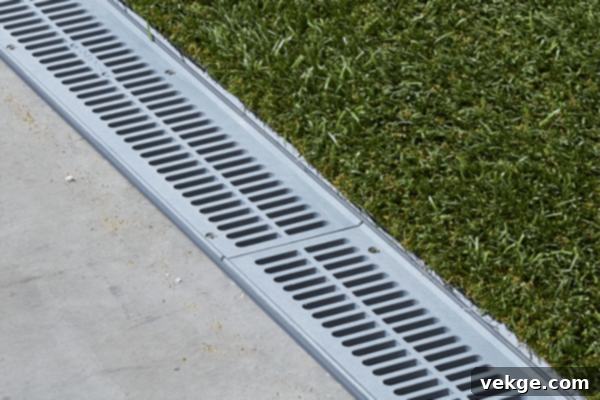

1. Linear Drain Channels (Trench Drains)

Linear drain channels, more commonly known as trench drains, are characterized by their long, narrow, and continuous design. They are typically installed flush with the ground surface, running along a specified path to efficiently collect and transport water over a wide area. Their design makes them exceptionally effective in areas where water tends to flow in a linear direction or where a substantial amount of surface water needs to be captured quickly across a broad expanse.

Common Applications: These versatile drains are ubiquitous in various settings, including residential driveways, patios, walkways, pool decks, garage entrances, sports fields, and extensive commercial areas like parking lots and loading docks. They are particularly effective in preventing sheet flow across large, impervious surfaces.
Materials: Trench drains are available in a range of durable materials. Common options include high-density plastics (PVC, HDPE) for lighter applications, polymer concrete for enhanced strength and chemical resistance, fiberglass, and even stainless steel for specialized, corrosive environments or high-end aesthetic demands. Material selection often depends on the expected load, environmental exposure, and aesthetic requirements.
Grate Options: The top of a trench drain is covered by a grate, which comes in numerous designs, patterns, and materials (e.g., cast iron for heavy loads, galvanized steel, stainless steel for corrosion resistance, plastic for lighter traffic and cost-effectiveness). Grates are selected based on load-bearing capacity (pedestrian, light vehicle, or heavy vehicle traffic), aesthetic appeal to blend with surroundings, and debris filtration needs. Some designs also offer ADA compliance for accessibility.
Advantages: Excellent for intercepting broad sheets of water, offer high flow rates, provide a continuous, unobtrusive appearance when properly installed, and can span significant lengths.

2. Point Drain Channels (Catch Basins / Area Drains)

In contrast to linear drains, point drain channels are designed for installation at specific, localized points where water naturally tends to accumulate, creating a low spot. They function as targeted collection points, funneling water into an underground drainage system. These drains are crucial for efficient, localized water removal in areas that might otherwise become waterlogged or suffer from standing water.

Common Applications: Ideal for specific problem areas such as gardens, landscaped beds, directly under downspouts to capture roof runoff, at the bottom of stairwells, or in specific low points within a paved area. They are often integrated into larger subsurface drainage networks, connecting via pipes.
Components: A typical point drain consists of a durable grate (similar to trench drain grates, chosen for load and aesthetics), a catch basin (a small, often square or circular reservoir that collects water and frequently incorporates a sediment trap), and an outlet pipe connection that directs the collected water away to a main line or discharge point.
Sediment Traps: A key feature of many catch basins is a sump area situated below the outlet pipe. This design allows silt, leaves, and other debris to settle at the bottom, preventing them from entering and clogging the main drainage pipes downstream. This significantly reduces maintenance efforts and extends the life of the entire system.
Advantages: Highly effective for localized water collection, can be strategically placed to target specific problem areas, and are relatively straightforward to install in isolated spots.

3. Slot Drains (Discreet Linear Drains)

Slot drains represent a specialized evolution of linear drains, offering a minimalist and almost invisible aesthetic. Instead of a wider grate, they feature a very narrow, continuous slot at the surface, which is often barely noticeable. This discreet slot connects to an underground channel that efficiently collects and carries water away.

Aesthetic Appeal: Highly favored in contemporary architectural and landscape designs where visual impact is a concern. They blend seamlessly into public plazas, modern patios, high-end commercial landscapes, and urban hardscapes.
Applications: Similar functional applications to trench drains but preferred where a sleek, unobtrusive appearance is paramount.
Maintenance Consideration: Due to their narrow opening, slot drains can be more prone to clogging by fine debris. They may require specific cleaning tools or methods, such as jetting, to maintain optimal flow.

4. French Drains (Subsurface Drainage)

While not a “channel” in the traditional surface water collection sense, French drains are an essential component of comprehensive outside drainage systems. They are subsurface systems specifically designed to collect groundwater and subsurface runoff before it reaches a property’s foundation or saturates a landscape, complementing surface drainage efforts.

How They Work: A trench is dug, typically lined with permeable landscape fabric to prevent soil intrusion, filled with gravel, and usually contains a perforated pipe at the bottom. Water seeps through the permeable gravel and fabric, then into the perforated pipe, and is directed away to a suitable discharge point.
Applications: Primarily used to relieve hydrostatic pressure against basement or crawl space foundations, dry out consistently soggy lawns or garden areas, and intercept water flowing underground down a slope.
Complementary Role: Often used in conjunction with surface channels (like linear or point drains) to manage both surface runoff and subsurface water issues, providing a holistic drainage solution.

The Indispensable Importance of Outside Drain Channels

Beyond simply moving water, robust outdoor drainage systems offer a multitude of critical benefits, safeguarding your property, enhancing its functionality, and preserving its value. Ignoring proper drainage can lead to extensive, costly repairs and significant safety hazards.

1. Preventing Costly Water Damage and Structural Degradation

This is arguably the most critical function of outside drain channels. Excess water, if left unchecked, can cause catastrophic damage to structures and landscapes. By efficiently diverting water away, these channels act as the first line of defense against:

Foundation Damage: Saturated soil around a foundation can expand and exert immense hydrostatic pressure, leading to cracks in walls, shifting foundations, and ultimately, severe structural instability. Water seepage into basements or crawl spaces can cause extensive damage to flooring, drywall, and personal belongings, as well as compromise structural integrity.
Basement and Crawl Space Flooding: Without proper drainage, heavy rain or snowmelt can quickly overwhelm lower levels of a property, leading to significant water intrusion and the need for expensive and disruptive remediation.
Mold and Mildew Growth: Consistently damp environments created by poor drainage are ideal breeding grounds for mold and mildew. These not only cause unsightly stains and unpleasant odors but can also lead to serious respiratory issues, allergic reactions, and significantly degrade indoor air quality.
Wood Rot and Pest Infestations: Constant moisture contact can lead to accelerated wood rot in structural elements (like joists and sills) and create an inviting habitat for destructive pests such as termites, carpenter ants, and various rodents seeking moisture.
Damage to Hardscapes: Patios, driveways, walkways, and retaining walls can suffer from erosion underneath, leading to shifting pavers, cracking concrete, uneven surfaces that pose trip hazards, and the premature degradation of expensive outdoor installations.

2. Enhancing Safety and Accessibility

Water accumulation on walking and driving surfaces presents significant safety risks that can be easily mitigated by effective drainage. Drainage channels play a vital role in enhancing property safety:

Minimizing Slip and Fall Risks: By rapidly removing water from sidewalks, pathways, entrance areas, and pool surrounds, drainage systems prevent slippery surfaces, greatly reducing the likelihood of accidents and injuries.
Improving Driving Conditions: On driveways, parking lots, and access roads, standing water can lead to dangerous hydroplaning, impairing vehicle control and increasing accident risk. Effective drainage ensures safer driving conditions, especially during heavy rainfall.
Preventing Ice Formation: In colder climates, standing water can freeze overnight or during cold snaps, creating treacherous, invisible icy patches. Drain channels reduce this risk, making pathways and surfaces much safer during winter months.
Pest Control: Standing water is a breeding ground for mosquitoes and other insects. By eliminating puddles, drainage systems contribute to a more comfortable and healthier outdoor environment.

3. Protecting Landscape Integrity and Soil Health

Your garden, lawn, and entire outdoor living areas also benefit immensely from effective drainage, preserving their beauty and health:

Preventing Soil Erosion: Uncontrolled water runoff can wash away valuable topsoil, degrade garden beds, expose plant roots, and create unsightly, damaging trenches. Drainage channels preserve soil structure and fertility.
Promoting Plant Health: Many plants, particularly ornamental and garden varieties, do not thrive in waterlogged soil, which can lead to root rot, nutrient deficiencies, and stunted growth. Proper drainage ensures healthy root development and vibrant plant growth.
Preserving Landscape Features: Protects retaining walls, garden beds, ponds, and other expensive landscape features from water damage, undermining, and collapse.

4. Compliance and Maximizing Property Value

In many regions, effective stormwater management is not just good practice but also mandated by local building codes and environmental regulations. Installing and maintaining proper drainage ensures compliance and contributes positively to property value by preventing damage, demonstrating responsible stewardship, and creating a more usable and attractive outdoor space.

The Installation Process: A Step-by-Step Guide for Outdoor Drainage

A successful and long-lasting drainage system begins with meticulous planning and precise installation. While many smaller projects can be undertaken by skilled DIY enthusiasts, complex or large-scale installations often benefit significantly from professional expertise to ensure optimal performance and adherence to regulations.

1. Thorough Site Assessment and Planning

This initial phase is arguably the most critical. It involves understanding every aspect of the site to design an effective and tailored drainage solution:

Topography Analysis: Carefully observe and analyze the natural slope and contours of the land. Identify existing high points, low points, and areas where water naturally collects or flows during rain events. This might involve using surveying tools for accuracy or simply observing water flow after a heavy downpour.
Water Source Identification: Determine the primary sources of excess water. Is it runoff from a roof (requiring downspout connections), a driveway, an adjacent property, a permeable area with poor soil percolation, or a combination? Understanding the source dictates the best placement and type of drain.
Soil Type and Permeability: Assess the soil’s composition and how quickly it absorbs water. Clay soils drain slowly, exacerbating water accumulation, while sandy soils drain quickly. This influences the need for subsurface drainage components like French drains.
Existing Utilities: Crucially, locate all underground utilities (water, gas, electrical, communication lines, sewer) before any excavation begins. This is paramount to prevent dangerous and costly damage. Contact local utility companies for mark-outs.
Identifying a Suitable Outlet Connection: Identify a legal, safe, and effective discharge point for the collected water. This could be a municipal storm drain, a designated dry well, a rain garden, a percolation trench, or a lower, non-problematic area of the property, ensuring it does not impact neighboring properties or create new problems.
Local Regulations: Check local building codes, environmental regulations, and homeowners’ association rules, as there may be specific requirements for drainage installations, discharge points, and stormwater management.

2. Choosing the Right Drainage System Components

Based on the comprehensive site assessment, select the most appropriate type and design of drainage channel and associated components:

Volume of Water: Estimate the expected peak volume of water the system needs to handle. Larger catchment areas or regions with higher average rainfall necessitate channels with greater capacity and wider grates.
Load Bearing Requirements: Consider whether the drain will be subjected to pedestrian traffic, light vehicle traffic (cars, lawnmowers), or heavy vehicle loads (trucks, commercial equipment). This dictates the required strength and material of the channel body and the grate.
Aesthetics: Match the channel and grate design to the surrounding landscape and architecture for a cohesive and visually pleasing look. Slot drains, for instance, offer a very discreet option.
Budget and Durability: Evaluate material costs, installation complexity, and labor against your budget. Investing in more durable materials initially can save on long-term maintenance and replacement costs.
Maintenance Considerations: Some systems are inherently easier to clean and maintain than others. Consider the accessibility of grates and catch basin sumps for debris removal.

3. Detailed Installation Steps

Once the planning is complete and all materials are gathered, the physical installation can begin. Precision at each step is vital for optimal performance.

Layout and Marking: Clearly mark the proposed path of the drainage channel using spray paint or stakes and string. Double-check that the path follows the intended slope consistently towards the outlet.
Excavation: Dig a trench according to the specified dimensions (width and depth) for your chosen channel type. The trench must have a consistent and adequate slope (typically 1/8 to 1/4 inch per foot, or 1-2% grade) towards the outlet to ensure gravity-fed water flow and prevent standing water.
Base Preparation: Lay a compacted layer of gravel, sand, or crushed stone (often 4-6 inches deep) at the bottom of the trench. This creates a stable, level, and well-draining base for the channel. For heavy-duty applications or unstable soil, a reinforced concrete base may be required for structural support.
Channel Placement: Carefully place the channel sections into the prepared trench. Ensure they are properly aligned, level (across the width), and securely connected according to the manufacturer’s instructions. For linear drains, ensure a continuous, uniform slope is maintained throughout the entire run.
Outlet Connection: Connect the drainage channel securely to the designated outlet pipe. Ensure a watertight seal at all connections using appropriate sealants or fittings to prevent leaks and soil intrusion. This pipe will carry the collected water away from the property to the discharge point.
Grates and Covers Installation: Securely place the grates or covers over the channels. Ensure they sit flush with the surrounding surface to prevent trip hazards and allow for efficient water collection. Fasten them according to manufacturer guidelines to prevent dislodgement.
Backfilling and Finishing: Carefully backfill the trench around the installed channels with appropriate material (e.g., compacted soil, gravel, concrete, or pavers). Ensure the channels remain stable and the surrounding surface is finished to match the existing landscape, providing a neat and functional transition.
Testing and Verification: Once the installation is complete, it’s crucial to test the system. Pour a significant amount of water into the channel (or wait for the next rainfall) to verify that water flows freely and efficiently to the designated outlet without pooling or overflowing at any point. Make any necessary adjustments to ensure optimal performance.

For complex installations, those involving significant excavation, or if you’re unsure about the design and regulatory requirements, hiring a professional drainage contractor is highly recommended. Their expertise ensures proper design, efficient installation, and adherence to local regulations, guaranteeing a robust and effective solution.

Essential Maintenance of Outside Drain Channels

The long-term effectiveness and longevity of any outdoor drainage system hinges on consistent and proactive maintenance. Neglecting your drain channels can quickly lead to blockages, reduced efficiency, structural damage, and ultimately, costly repairs that could have been avoided.

1. Regular Cleaning and Debris Removal

The most common issue affecting drain channels is clogging, primarily caused by accumulated debris. Regular cleaning is paramount to prevent blockages and maintain optimal flow:

Frequency: Schedule cleaning based on your property’s environment. Areas with heavy foliage, nearby trees, or significant soil runoff may require monthly or quarterly cleaning. Less busy areas might only need biannual checks. Always inspect and clean the channels thoroughly after heavy storms or strong winds.
Tools: Use appropriate tools such as a stiff brush, a garden hose with good pressure, or a power washer to dislodge stubborn debris. Leaf blowers can also be effective for clearing dry debris from grates and surface channels. For deeper blockages within the channel body or connecting pipes, a drain snake or auger might be necessary.
What to Remove: Focus on clearing leaves, twigs, dirt, silt, gravel, grass clippings, and any other organic matter that can impede water flow. Pay particular attention to grates, which act as initial filters and are often the first point of blockage.
Sediment Traps: If your system includes catch basins with sumps, regularly clean out the accumulated sediment, sand, and debris from these traps to maintain their capacity and prevent these materials from entering and clogging the main drainage pipes.

2. Periodic Inspections and Damage Checks

Beyond simple cleaning, regular, thorough inspections help identify potential problems early, before they escalate into major issues:

Structural Integrity: Visually inspect the channel body for any signs of cracks, chips, deterioration, or signs of wear, especially in high-traffic areas or climates with significant freeze-thaw cycles. Look for any shifting or separation of channel sections, which can indicate ground movement or improper installation.
Grate Security and Condition: Ensure all grates and covers are securely in place and are not broken, warped, or damaged. Loose or damaged grates can be significant trip hazards and allow larger debris to enter the system, leading to deeper blockages.
Observe Water Flow: During or immediately after rainfall, observe how water flows through the channels. Are there any areas where water is pooling, moving slowly, or overflowing? This could indicate a subtle blockage, an issue with the channel’s slope, or an undersized system.
Vegetation Intrusion: Inspect for roots from nearby trees or shrubs that might be growing into or around the channels, potentially causing blockages or structural damage to the channel walls or pipes.
Outlet Clearances: Ensure the main outlet pipe is completely clear of obstructions and that the discharge area is not blocked, overgrown, or prone to erosion that could undermine the outlet.

3. Seasonal Maintenance Tips

Autumn: Increase cleaning frequency significantly as leaves fall from deciduous trees. Consider installing finer mesh leaf guards on grates to minimize debris entry during this period.
Winter: Ensure channels are thoroughly clear of debris before the first hard freeze to prevent ice blockages, which can cause severe damage. Be mindful of snow removal efforts, ensuring channels aren’t damaged by plows or buried under compacted snow piles. Monitor for ice buildup within the channels that can impede flow.
Spring: Conduct a comprehensive cleaning and inspection after snowmelt and spring rains to clear any winter debris and assess for damage, preparing the system for heavier rainfall in the warmer months.
Summer: Continue routine checks, especially after heavy thunderstorms. Address any weed growth within or around the channels promptly.

Addressing Common Problems and Solutions for Outdoor Drains

Even with diligent maintenance, issues can arise with outdoor drainage systems. Understanding common problems and having effective solutions readily available is key to keeping your drainage channels functioning reliably and efficiently.

1. Clogging and Blockages

Problem: This is the most frequent issue, caused by an accumulation of leaves, dirt, silt, gravel, organic matter, and other debris that restricts or completely stops water flow within the channel or connecting pipes.

Solution:

Regular Cleaning: As previously emphasized, proactive and frequent removal of debris is the most effective defense against clogs.
Grate Guards/Filters: Install finer grates or specific debris filters designed to prevent larger items like leaves and twigs from entering the channel body while still allowing water to pass.
Professional Jetting: For stubborn, deep-seated blockages within the channel or connecting pipes that cannot be reached manually, professional drain cleaning services use high-pressure water jets (hydro-jetting) to effectively clear obstructions.
Root Removal: If tree or shrub roots are determined to be the cause, they may need to be cut out using specialized equipment, or the affected pipe section replaced with root-resistant materials.

2. Structural Damage

Problem: Drainage channels can crack, break, shift, or deteriorate due to various factors such as heavy traffic loads, ground movement (e.g., expansive soils, seismic activity), repeated freeze-thaw cycles, incorrect installation (improper bedding or backfilling), or simple material degradation over time.

Solution:

Repair or Replace Damaged Sections: Small cracks or chips may be patched with appropriate epoxy or concrete repair compounds. However, severely damaged sections of the channel body or grates should be completely replaced to restore the system’s integrity and full function.
Upgrade Materials: In areas subject to heavy loads (e.g., commercial driveways, industrial yards), consider upgrading to more robust and durable channel materials (e.g., polymer concrete, reinforced fiberglass) and heavier-duty grates (e.g., cast iron) specifically designed for high traffic classifications.
Ensure Proper Installation: Correct bedding (stable base) and meticulous backfilling during the initial installation are crucial preventative measures to avoid future structural issues. Proper compaction of surrounding soil also helps.

3. Poor Drainage or Standing Water (System Inefficiency)

Problem: Despite having a drainage channel in place, water still pools on surfaces, overflows the channel, or flows inefficiently, indicating the system isn’t performing as expected.

Solution:

Re-check Slope: This is often the most common culprit. The channel may not have been installed with an adequate or consistent slope (gradient) to allow gravity to move water efficiently. Re-grading the trench or adjusting the channel’s position may be necessary to achieve the correct pitch.
Undersized Channel: The channel’s capacity (width and depth) might be insufficient for the actual volume of water it needs to handle during peak rainfall events. This could necessitate installing additional channels, a larger capacity system, or diverting some water elsewhere.
Blocked Outlet: Even if the channel itself is clear, the main outlet pipe or the final discharge point might be completely blocked, causing a backup. Ensure the entire outflow path is free of obstructions.
Soil Compaction: If water is pooling around the channel, the surrounding soil may be too compacted, preventing absorption. Aeration or adding permeable materials to the surrounding landscape can help.

4. Root Intrusion

Problem: Tree and shrub roots can relentlessly seek out moisture and nutrients, infiltrating drainage pipes and channels through joints or cracks, causing severe blockages and structural damage to the system over time.

Solution:

Root Barriers: Install physical root barriers (made of durable plastic or fabric) during the initial installation to prevent roots from reaching the drainage system pipes and channels.
Chemical Treatments: Specific root-killing chemicals can be introduced into the drainage system to inhibit root growth. Use these with extreme caution and strictly according to environmental guidelines and manufacturer instructions.
Professional Root Removal: Specialized equipment such as augers with cutting blades or hydro-jetting equipment can effectively clear existing root intrusions from pipes and channels.
Relocation or Replacement: In severe and recurring cases, it may be necessary to remove the offending plant, or replace the affected drainage section with root-resistant piping (e.g., seamless, durable plastic) or reposition the drain away from large trees.

5. Foul Odors

Problem: Unpleasant smells emanating from drain channels, often due to stagnant water, decomposing organic matter (like leaves, algae, or trapped debris), or, in rare cases, sewer gas if there’s an improper connection to a sanitary sewer system without adequate traps.

Solution:

Thorough Cleaning: The first step is to remove all organic debris and sediment that could be decomposing. Flush the channels thoroughly with water, and if appropriate, use a mild, eco-friendly disinfectant or a baking soda and vinegar solution.
Ensure Consistent Flow: Address any issues causing water to stagnate within the channel. Proper slope and a clear path to the outlet will prevent standing water.
Check for Sewer Connections: If odors persist and a connection to a sanitary sewer system is suspected, ensure proper P-traps and venting are in place to prevent sewer gas from escaping. This usually requires a plumbing professional.

Summary: The Enduring Value of Outside Drain Channels

This comprehensive guide has aimed to provide a thorough understanding of outside drain channels, highlighting their critical importance, diverse types, the intricacies of their installation, the necessity of proactive maintenance, and practical solutions for common issues. From safeguarding structural integrity and enhancing property safety to preserving valuable landscapes and adhering to environmental regulations, well-designed and properly maintained outdoor drainage systems are truly indispensable assets for any property owner.

By investing in effective drainage solutions and committing to their ongoing care, property owners can significantly mitigate the risks associated with excess water. This proactive approach ensures a drier, safer, and more resilient environment, protecting your investment and providing peace of mind for years to come. Remember, efficient water management isn’t just about preventing problems; it’s about optimizing the functionality, aesthetics, and longevity of your entire property, creating a more sustainable and enjoyable outdoor living space.
