Understanding Cabinet Anatomy: A Comprehensive Guide to Components, Construction, and Materials

Cabinets are more than just storage boxes; they are fundamental elements that define the functionality, flow, and aesthetic appeal of kitchens, bathrooms, and laundry rooms. They house our daily essentials, keep our spaces organized, and contribute significantly to the overall design of our homes. Whether you’re embarking on a major home renovation, simply upgrading existing storage, or even considering building your own units, understanding the intricacies of cabinet anatomy is incredibly valuable.

This comprehensive guide is designed to demystify the various components that come together to form a complete cabinet. We’ll break down each part, explore different construction methods, discuss the materials commonly used, and even touch upon the often-overlooked add-ons that enhance both form and function. With clear explanations, practical insights, and no unnecessary jargon, you’ll gain the confidence needed to make informed decisions for your next cabinet project, ensuring durability, utility, and lasting style.

Main Cabinet Components: The Building Blocks of Functionality

To truly appreciate the strength and design of a cabinet, it’s essential to understand its core components. Each piece plays a specific role, contributing to the cabinet’s stability, functionality, and overall appearance. Knowing these parts helps you assess quality, choose the right style, and even troubleshoot potential issues. Let’s explore the fundamental elements:

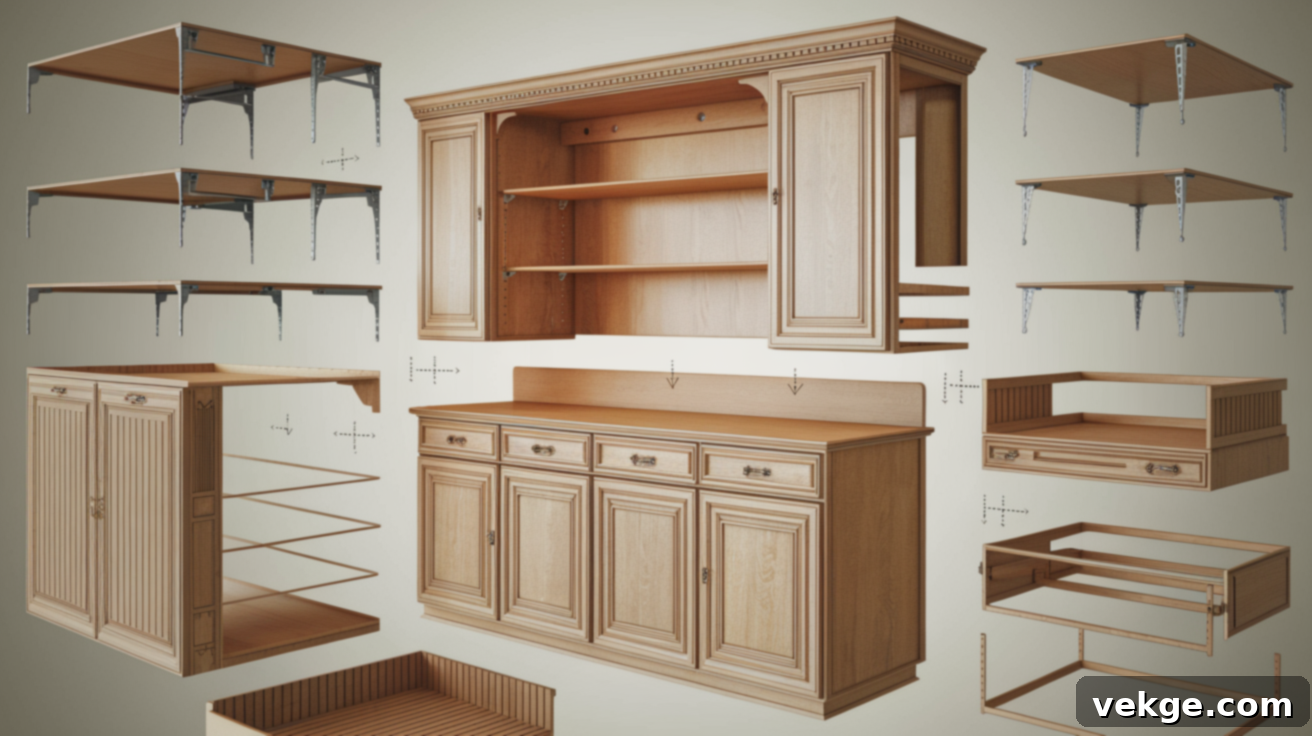

1. Cabinet Box or Carcass: The Foundation

Often referred to as the carcass, the cabinet box is the fundamental skeletal structure that supports all other parts. It’s the sturdy frame that dictates the cabinet’s dimensions and holds everything from shelves to doors. A well-constructed cabinet box is crucial for long-term durability and stability, especially in high-traffic areas like kitchens where it endures daily use and significant weight. The basic cabinet box typically comprises four main pieces:

Sides: The vertical panels that define the cabinet’s depth and height.
Back: The rear panel that closes off the cabinet and provides rigidity.
Top: The upper horizontal panel of wall cabinets, or the upper frame for base cabinets.
Bottom: The lower horizontal panel, supporting the contents within.

These pieces are meticulously joined to form a strong, balanced structure, providing the essential support for everything else that will be added. The quality of these joints (e.g., dado, rabbet, or butt joints) significantly impacts the cabinet’s longevity.

Beyond the basic structure, cabinet boxes are designed for specific applications:

Base Cabinets: These cabinets rest directly on the floor and are specifically designed to support countertops, sinks, cooktops, and provide essential workspace. They are typically deeper (around 24 inches) to accommodate plumbing and larger items, often featuring drawers or pull-out shelves for easy access to pots, pans, and cleaning supplies.
Wall Cabinets: Mounted on the wall above base cabinets or appliances, wall cabinets free up floor space while offering convenient overhead storage. They are generally shallower (around 12-15 inches deep) and come in various heights to accommodate dishes, glassware, spices, and other regularly accessed items.
Tall Cabinets: Extending from the floor nearly to the ceiling, tall cabinets maximize vertical storage. They are ideal for pantry storage, utility cabinets, or even integrated appliance housings, offering vast space for food, cleaning supplies, or bulky kitchen equipment.

2. Face Frame: The Aesthetic and Structural Edge

The face frame is a flat, decorative, and structural frame attached to the front of the cabinet box. It serves several purposes: it provides a solid mounting surface for doors and drawers, enhances the cabinet’s rigidity, and contributes significantly to its aesthetic style. This frame is typically constructed from two vertical pieces called “stiles” and two horizontal pieces called “rails,” joined together.

The presence or absence of a face frame distinguishes two primary types of cabinet construction:

Framed Cabinets: These cabinets feature a face frame, to which doors and drawer fronts are directly attached. This traditional construction style adds a classic look and offers enhanced structural integrity, helping to prevent the cabinet box from racking or twisting over time.
Frameless Cabinets (European Style): As the name suggests, these cabinets forgo the face frame. Doors and drawer fronts attach directly to the sides of the cabinet box. This design provides a clean, contemporary aesthetic with full overlay doors and slightly more accessible interior space due to the lack of an obstructing frame.

3. Doors and Drawer Fronts: The Style Statement

Cabinet doors and drawer fronts are the most visible parts of your cabinetry, dictating the overall style and character of your space. Beyond their aesthetic appeal, they conceal the cabinet’s contents, keeping your space tidy and organized. The vast array of styles, materials, and finishes allows for endless design possibilities.

Here are a few common and popular styles:

Shaker: Characterized by a flat, recessed center panel surrounded by a simple, clean frame. Shaker cabinets are timeless, versatile, and suit various design aesthetics from traditional to modern farmhouse.
Slab: Also known as flat-panel, these are simple, solid panels with no ornamentation or framing. Slab doors offer a minimalist, contemporary look, known for their sleek lines and ease of cleaning.
Raised Panel: Featuring a center panel that is slightly raised or beveled from the surrounding frame, creating a more ornate and traditional appearance. These add depth and detail, often found in classic or formal kitchen designs.
Recessed Panel: Similar to Shaker, but often with more intricate profiles or additional details around the recessed panel, offering a slightly more decorative traditional style.
Arch Top/Cathedral: Doors with a curved or arched design at the top of the center panel, adding a softer, more decorative touch often seen in traditional or country-style kitchens.

The choice of door and drawer front style, combined with the material and finish, significantly influences the final look and feel of your entire living space.

4. Interior Elements: Organized Storage

Beyond the primary structure, the interior of a cabinet is designed for efficient storage. The main internal components are shelves and drawer boxes, which further categorize and organize your belongings.

Shelves: These horizontal surfaces divide the cabinet’s vertical space. Shelves can be fixed for permanent storage or, more commonly, adjustable. Adjustable shelves utilize a system of pins and holes (or standards) allowing you to move them up or down to accommodate items of varying heights, offering maximum flexibility. Materials typically include plywood, MDF, or even glass for display cabinets.
Drawer Boxes: These are the internal containers that slide in and out of the cabinet. Drawer boxes come in various materials (solid wood, plywood, particle board) and are joined in different ways. High-quality drawer boxes often feature sturdy joints like dovetails, which interlock for superior strength and durability. Other joint types include dado, rabbet, or simple butt joints with glue and fasteners.

5. Hardware: The Functional Details

Hardware refers to all the metal components that enable the cabinet’s functionality and add to its aesthetic. Good quality hardware ensures smooth operation, durability, and a polished finish.

Hinges: These mechanical devices connect cabinet doors to the cabinet box (or face frame) and allow them to pivot open and closed. Hinges come in various types:
- Concealed (European) Hinges: Most common in modern cabinetry, these are hidden from view when the door is closed, offering a sleek look. Many include soft-close mechanisms.
- Exposed Hinges: Traditional butt hinges or decorative surface-mount hinges that are visible and contribute to the cabinet’s style.
Drawer Slides: Also known as drawer glides, these mechanisms enable drawer boxes to smoothly open and close. They are crucial for ease of access and can significantly impact the user experience. Common types include:
- Side-Mount Slides: Attached to the sides of the drawer box and the cabinet opening. Easier to install, available in various load capacities.
- Under-Mount Slides: Mounted beneath the drawer box, these are hidden from view, providing a cleaner look. They often offer full extension and soft-close features for a premium feel.
- Center-Mount Slides: A single slide mounted under the center of the drawer. Less common for heavy-duty applications.
Knobs and Pulls: These are the decorative and functional handles attached to doors and drawer fronts. They facilitate opening and closing while serving as key design elements that can dramatically alter the cabinet’s style. Available in countless materials, shapes, and finishes.

Cabinet Materials: The Foundation of Durability and Style

The materials chosen for cabinet construction greatly influence their cost, durability, weight, and overall aesthetic. Understanding the properties of each material is key to making a choice that aligns with your budget and needs.

Solid Wood: Prized for its natural beauty, strength, and durability, solid wood is a classic choice for cabinet doors, drawer fronts, and sometimes face frames. Common species include maple, oak, cherry, and birch. While it offers a rich, timeless look and can be refinished multiple times, solid wood is susceptible to expansion and contraction with changes in humidity, which can lead to warping or cracking if not properly maintained.
Plywood: Made from thin layers of wood veneer glued together with alternating grain directions, plywood is a highly stable and strong material. It’s an excellent choice for cabinet boxes (carcasses) due to its resistance to warping and sagging, superior screw-holding capacity compared to particle board, and good moisture resistance (especially marine-grade plywood). It’s generally more expensive than particle board but offers greater longevity.
MDF (Medium-Density Fiberboard): An engineered wood product made from wood fibers, resin, and wax pressed into dense panels. MDF is very smooth, making it an ideal substrate for painted finishes, as it won’t show wood grain. It’s stable and resistant to warping, making it popular for cabinet doors and drawer fronts. However, it is heavy, less structurally strong than plywood, and highly susceptible to water damage if not properly sealed.
Particle Board: The most economical engineered wood product, particle board is made from wood chips, sawdust, and resin pressed together. It’s often used for cabinet boxes in budget-friendly cabinetry. While affordable, it is the least durable and least moisture-resistant material, prone to swelling and breaking down if exposed to water. Its screw-holding ability is also lower than plywood or solid wood.

In practice, you’ll often find a combination of materials within a single cabinet: plywood or particle board for the box (carcass), and solid wood, MDF, or a combination for doors and drawer fronts to balance cost, aesthetics, and performance.

Cabinet Add-Ons and Trim: The Finishing Touches

Beyond the core components, several supplementary parts and decorative trim pieces contribute significantly to both the functionality and finished appearance of your cabinets. These elements often go unnoticed individually but collectively make a big difference in the cabinet’s integration into your space.

Toe Kick

The toe kick is the recessed area at the very bottom of base cabinets, typically about 3.5 to 4 inches tall and 3 inches deep. Its primary purpose is ergonomic: it allows you to stand comfortably closer to the countertop, preventing you from kicking the cabinet base. It also gives the cabinet a finished, furniture-like appearance and protects the base from everyday scuffs and spills.

Crown and Filler Molding

Crown Molding: A decorative trim piece added to the very top of wall cabinets. Crown molding helps to bridge the gap between the cabinet and the ceiling, creating a polished, built-in look and concealing any unevenness in the ceiling or cabinet alignment. It comes in various profiles, from simple coves to elaborate ogees.
Filler Molding: Narrow strips of wood used to fill in small gaps between cabinets, or between a cabinet and a wall. Fillers ensure a seamless, custom fit, prevent unsightly gaps, and provide necessary clearance for doors and drawers to open without hitting adjacent surfaces.
Light Rail Molding: A decorative strip installed along the bottom edge of wall cabinets. Its purpose is to conceal under-cabinet lighting fixtures, providing a cleaner look and directing light downwards onto the countertop.

Back Panels & Nailers

These components, while often out of sight, are vital for structural integrity and secure installation.

Back Panels: The rear panel of the cabinet box. For wall and tall cabinets, this panel is often made of thinner material (e.g., hardboard or thin plywood) and serves to close off the back, providing rigidity and preventing items from falling out. For base cabinets, a full back panel may be present, or sometimes just horizontal nailers.
Nailers: These are sturdy wood strips or blocks attached horizontally to the inside back of the cabinet box. They provide a reinforced area for screws to pass through, securely attaching the cabinet to wall studs during installation.

Types of Cabinet Construction: Framed vs. Frameless

The way a cabinet is constructed significantly impacts its appearance, interior capacity, and overall strength. The primary distinction in cabinet construction styles lies between framed and frameless designs, each offering unique benefits and catering to different aesthetic preferences and functional requirements. Understanding these differences is crucial for selecting cabinetry that best suits your space and lifestyle.

Framed vs. Frameless Cabinets

This comparison helps you determine which construction style aligns with your design vision and functional needs, influencing everything from the visual aesthetics to the amount of usable storage space.

Feature	Framed Cabinets	Frameless Cabinets
Front Structure	Includes a face frame made of vertical stiles and horizontal rails. Doors and drawer fronts mount to this frame.	No face frame; doors and drawer fronts attach directly to the side walls of the cabinet box.
Style Fit	Common in classic, traditional, farmhouse, and transitional design spaces. Offers different door overlays (full, partial, inset).	Often used in modern, contemporary, or minimalist designs. Characterized by full overlay doors for a sleek, continuous look.
Door Mounting	Doors attach to the face frame, often with exposed or partially concealed hinges depending on the overlay.	Doors attach to the side walls of the cabinet box using fully concealed European hinges.
Interior Space	Slightly less usable space due to the thickness of the face frame, which creates a small lip around openings.	Offers a bit more room inside and easier access to the full width of the cabinet opening due to the absence of a frame.
Support & Strength	The face frame adds significant structural strength and rigidity, helping to prevent the cabinet box from racking.	Relies heavily on strong box construction, often using thicker side panels and robust joining methods to maintain stability.
Ease of Access	Slightly smaller opening due to the frame edges, which can sometimes make it harder to retrieve wide items.	Wider opening with full, unobstructed access to the cabinet interior, simplifying storage and retrieval.
Installation	May require more shimming to ensure proper alignment during installation due to the frame.	Often considered easier to install for a perfectly flush, continuous line of cabinets.

Base vs. Wall Cabinets

While we’ve touched upon these earlier, it’s worth reiterating their distinct roles and characteristics in cabinet construction. Base and wall cabinets are the two most common types, working in tandem to create a functional and organized kitchen or bathroom.

Feature	Base Cabinets	Wall Cabinets
Placement	Sitting directly on the floor, forming the lower section of cabinetry.	Mounted on the wall, typically above base cabinets or appliances.
Purpose	Supports countertops, holds sinks, cooktops, and provides primary workspace. Often contains larger storage items.	Adds extra storage without using floor space, keeping items within easy reach or for display.
Depth	Usually 24 inches deep (excluding door/drawer front), accommodating standard appliance depths.	Typically 12 to 15 inches deep, designed for dishes, glassware, and pantry items without interfering with counter space.
Height	Standard height is 34.5 inches (36 inches with countertop), allowing for comfortable working height.	Varies greatly (e.g., 30, 36, 42 inches) depending on ceiling height and desired aesthetic.
Common Use	Pots, pans, small appliances, cleaning supplies, trash/recycling pull-outs, drawers for utensils.	Dishes, spices, glassware, cookbooks, food items, decorative objects, sometimes with glass doors.

Understanding Cabinet Terminology: Your Glossary for Confidence

Navigating the world of cabinets can be easier with a clear understanding of common industry terms. This quick glossary will help you communicate effectively with contractors, understand product specifications, and confidently plan your projects.

Carcass: The main structural box of a cabinet, comprising the sides, top, bottom, and back panels. It’s the core framework to which all other components, such as doors, drawers, and shelves, are attached.
Face Frame: A flat, structural frame attached to the front of a traditional cabinet box. It provides rigidity, a mounting surface for doors and drawers, and defines the cabinet’s aesthetic.
Stile: The vertical pieces of a cabinet face frame. Stiles run from top to bottom and define the vertical dimensions of door and drawer openings.
Rail: The horizontal pieces of a cabinet face frame. Rails connect the stiles, forming the horizontal divisions of the frame and supporting cabinet components.
Toe Kick: The recessed area at the bottom front of a base cabinet. It allows space for your feet when standing close to the counter, enhancing comfort and preventing scuffs on the cabinet base.
Crown Molding: A decorative trim piece applied to the top edge of wall cabinets to create a finished look, often bridging the gap between the cabinet and the ceiling.
Filler Strip: A narrow piece of wood used to fill small gaps between cabinets, or between a cabinet and a wall. It ensures a continuous look and proper door/drawer clearance.
Drawer Box: The inner, movable container of a drawer that holds items. It slides in and out of the cabinet, typically made of wood or engineered wood, with various joint constructions.
Overlay: Refers to how much the cabinet door or drawer front covers (or “overlays”) the cabinet opening or face frame. Common types include full overlay, partial overlay, and inset.

Having these terms at your fingertips will make your cabinet journey much smoother, whether you’re browsing showrooms, consulting professionals, or diving into a DIY project.

Tips for DIY Cabinet Builders: Crafting Your Own Storage

Embarking on a DIY cabinet building project can be incredibly rewarding. While it requires patience and precision, even beginners can achieve great results by starting simple and following key guidelines. Here are some tips to help you along the way:

Start Simple: Begin with basic box constructions for shelves or utility cabinets before tackling complex drawer assemblies or intricate joinery.
Measure Twice, Cut Once: Accuracy is paramount. Double-check all measurements before making any cuts to avoid costly mistakes. Invest in a good quality tape measure and a reliable square.
Choose the Right Materials: For strength and stability, opt for good quality plywood for your cabinet boxes. For painted finishes, MDF works well for doors and drawer fronts.
Master Your Joints: Learn basic woodworking joints like butt joints with screws and glue for strength. As you gain confidence, explore dado or rabbet joints for stronger, cleaner connections.
Clamp Correctly: Use clamps generously to hold pieces firmly in place while glue dries or screws are driven. This ensures tight, strong joints.
Ensure Squareness: Consistently check that all corners are perfectly square (90 degrees) as you assemble. A non-square cabinet will lead to doors that don’t close properly and a weak structure.
Label Everything: As you cut pieces, label them clearly (e.g., “Left Side, Wall Cabinet A”). This prevents confusion during assembly.
Invest in Essential Tools: You’ll need a tape measure, drill and various bits, a saw (circular saw or miter saw for precision), clamps, wood glue, and a level. Safety gear (gloves, eye protection) is also crucial.
Take Your Time: Rushing leads to errors. Work methodically, focusing on precision at each step.
Consider Pre-drilling: Always pre-drill pilot holes for screws, especially near edges, to prevent wood from splitting.
Finishing Touches: Don’t overlook sanding. Proper sanding (gradually moving to finer grits) is essential for a smooth finish, whether you plan to paint or stain. Apply primer before painting for better adhesion and a more durable finish.

Building your own cabinets is a journey of learning. Embrace the process, celebrate small victories, and enjoy the satisfaction of creating something functional and beautiful with your own hands.

Final Thoughts: Empowering Your Cabinet Choices

You’ve now taken a deep dive into the fascinating world of cabinets, gaining a comprehensive understanding of their various parts, construction methods, and material options. From the sturdy carcass that forms the foundation to the aesthetic flair of doors and the smooth functionality of hardware, every component plays a vital role in creating a durable and beautiful storage solution for your home.

This knowledge empowers you, whether you’re planning a full kitchen remodel, seeking to replace a single vanity, or embarking on a custom DIY build. You can now confidently evaluate quality, articulate your preferences, and make informed decisions that align with your budget, style, and functional needs. Remember that even the smallest details, like toe kicks and filler strips, contribute significantly to the overall success and longevity of your cabinetry.

Thank you for exploring this guide. We hope it instills greater confidence and prepares you to select or create the perfect cabinets that will serve your space beautifully for years to come.
