Unlocking Ultimate Comfort and Efficiency: A Comprehensive Guide to Multi-Zone HVAC Systems for Your Home
In modern residential settings, achieving optimal indoor comfort and energy efficiency is paramount. Traditional HVAC (Heating, Ventilation, and Air Conditioning) systems, while foundational for thermal comfort and air quality, often operate by conditioning the entire home uniformly. This approach frequently leads to energy waste and uneven temperatures, as different areas of a house have varying needs based on sunlight exposure, occupancy, and insulation levels. However, with significant advancements in HVAC technology and a growing emphasis on sustainable living, multi-zone HVAC systems have emerged as a sophisticated solution, particularly for high-performance residential applications seeking customized comfort and substantial energy savings.
A multi-zone HVAC system represents a paradigm shift in home climate control. Instead of treating your entire home as a single thermal unit, it intelligently divides your living space into distinct zones, each with its own independent temperature control. This means that a sunny living room, often requiring more cooling, can be managed separately from a cooler, less-used basement that might need more heating. By precisely delivering heated or cooled air only where and when it’s needed, a multi-zone system dramatically reduces energy consumption, eliminates uncomfortable hot and cold spots, and enhances overall occupant comfort. Whether you reside in a sprawling single-family home, a multi-story house, or a property with diverse heating and cooling demands, a zoned HVAC system offers an intelligent, adaptable, and highly efficient way to manage your indoor climate.
Understanding Multi-Zone HVAC Systems
At its core, a multi-zone HVAC system is designed to provide individual control over temperature and airflow in various sections of your home. This capability is invaluable in homes where different rooms experience distinct thermal loads and occupancy patterns throughout the day. For instance, bedrooms might be kept cooler at night, while living areas are conditioned during the day. This intelligent partitioning of your home into zones allows the system to deliver the exact amount of heating or cooling required for each specific area, thereby minimizing energy waste and significantly boosting personalized comfort levels for every resident. This level of granular control is a stark contrast to conventional systems that often lead to over-conditioning unused spaces or under-conditioning frequently occupied areas.
The beauty of a multi-zone system lies in its adaptability. It can be tailored to suit any residential property, from compact single-family homes to expansive estates. The division into zones is not arbitrary; it’s carefully planned based on factors such as room layout, insulation characteristics, window orientation, and even the daily routines of the occupants. This strategic approach ensures that every part of your house benefits from optimal thermal management, leading to a more pleasant and environmentally friendly living environment.
The Advanced Technology Behind HVAC Zoning
HVAC zoning technology is a sophisticated integration of advanced equipment and intelligent control strategies. It transforms a uniform heating and cooling system into a highly responsive, personalized climate control network. The fundamental principle involves segmenting your home into multiple zones, each equipped with its own dedicated thermostat, allowing for distinct temperature settings. These individual zone thermostats communicate seamlessly with a central control system, which utilizes specialized algorithms to orchestrate the entire operation.
The mechanisms for directing conditioned air vary. The most common involves motorized zone dampers, which are strategically placed within the ductwork to regulate the flow of air to specific zones. Other advanced systems might utilize modulating Variable Air Volume (VAV) boxes, which not only control airflow but also precisely adjust the volume of air delivered. For homes without extensive ductwork, or those requiring extreme flexibility, multi-split systems offer an excellent solution, featuring one outdoor unit connected to multiple indoor units that can operate independently. These technologies work in concert to ensure that each zone receives the precise amount of heating or cooling required, taking into account dynamic factors such as room size, the quality of insulation, the number of windows, and the typical usage patterns of the space.
Further enhancing their efficiency and responsiveness, modern multi-zone systems often incorporate cutting-edge components. These can include digital scroll compressors, which can continuously adjust their speed to match the exact demand, rather than cycling on and off. Electronically commutated (EC) motors, known for their superior energy efficiency, are frequently employed in fans and blowers. Moreover, Direct Digital Control (DDC) systems serve as the brains of these operations, providing granular, precise, and real-time control over every aspect of the HVAC system, ensuring peak performance and optimal comfort while minimizing energy consumption. Visit VVSkonsult.net to read more about HVAC design and CAD-drawn systems, offering deeper insights into the engineering behind these sophisticated solutions.
The Key Components of Multi-Zone HVAC Systems
A multi-zone HVAC system is a marvel of integrated engineering, where several crucial components work harmoniously in a residential setting to deliver unparalleled climate control. Understanding these parts helps appreciate the intelligence and efficiency of such systems:
Zoning Sensors and Central Control Unit
The central control unit is often referred to as the ‘brain’ of the entire multi-zone system. This sophisticated device, which could range from a dedicated zoning controller to a comprehensive Building Management System (BMS) in larger homes, receives and processes data from all system components. Thermostats in each individual zone continuously send vital information, such as current temperature, desired setpoint, and occupancy status, to this central unit. Based on this input, the control unit orchestrates the necessary adjustments across the system. Beyond temperature, advanced control units can integrate with an array of sensors that monitor indoor air quality (IAQ) parameters like humidity levels, carbon dioxide (CO2) concentrations, and volatile organic compounds (VOCs). This ensures that the indoor environment is not only thermally comfortable but also boasts superior air quality, contributing to a healthier living space.
Zone Dampers
Zone dampers are essential mechanical components strategically installed within the ductwork. Functioning much like valves, these dampers regulate the volume of conditioned air flowing into specific parts of your home. They are typically motorized and controlled by actuators, which respond to signals transmitted from the central control unit. When a particular zone requires more heating or cooling, its corresponding damper will open wider to increase airflow. Conversely, if a zone has reached its desired temperature or is unoccupied, the damper will partially close or fully shut off airflow to that area. In highly advanced systems, pressure-independent dampers may be employed. These sophisticated dampers automatically adjust to maintain consistent airflow regardless of pressure fluctuations in the duct system, ensuring balanced air distribution throughout the entire house and preventing issues like noise or reduced airflow in other zones.
Independent Thermostats
A cornerstone of personalized comfort, each zone in a multi-zone system is equipped with its own independent thermostat. These are often smart thermostats, boasting Wi-Fi connectivity, allowing homeowners to monitor and adjust temperatures remotely via smartphone applications or voice commands. Modern thermostats go beyond simple temperature sensing; they can incorporate features like programmable schedules, occupancy sensors (which detect if a room is in use), and even humidity sensors. They are the primary interface through which occupants communicate their comfort preferences to the central control unit, ensuring that each zone receives precisely the right amount of heating or cooling to maintain the desired conditions.
Optimized Ductwork
The ductwork in a multi-zone system is far more intricate and precisely engineered than in a traditional single-zone setup. It’s a carefully designed network of conduits that efficiently transports conditioned air throughout your home to each designated zone. The design must ensure that each zone receives its appropriate share of airflow without compromising pressure or efficiency. This often involves the use of specialized materials designed to reduce noise, and ample insulation to prevent thermal loss or gain as air travels through the ducts. HVAC engineers utilize advanced Computational Fluid Dynamics (CFD) software and other sophisticated tools to calculate the optimal size, shape, and layout of the ducts. This meticulous planning is critical to ensure uniform air distribution, minimize energy consumption, and guarantee the quiet and efficient operation of the entire system.
Air Handlers or Fan Coils
Air handlers or fan coils are pivotal units responsible for distributing the conditioned air produced by the main HVAC unit (furnace or air conditioner) to each of the designated zones. These units often feature variable-speed electronically commutated (EC) motors, which can dynamically adjust the fan speed to precisely match the system’s demand. This not only ensures highly efficient operation but also significantly reduces noise levels compared to traditional fixed-speed motors. Beyond air circulation, modern air handlers frequently integrate advanced filtration systems, such as MERV 13 or even HEPA filters, to capture microscopic particles, allergens, and pollutants. For enhanced indoor air quality (IAQ), they might also include UV-C lamps to sterilize airborne pathogens and electronic air cleaners to remove dust, pollen, and other fine particles. The sizing and capacity of these units are meticulously selected based on the specific heating and cooling load calculations for each zone, ensuring optimal performance and efficiency.
How Does a Multi-Zone HVAC System Work in A Residential Home?
The operational elegance of a multi-zone HVAC system lies in its ability to adapt and respond to the unique needs of different areas within your home. By dividing the residence into distinct zones, each with its own temperature settings and airflow requirements, the system leverages advanced zoning technology to deliver precise heating or cooling. Here’s a detailed look at its functional workflow:
Zone Configuration: The initial step in implementing a multi-zone system involves careful planning and engineering to divide the home into logical zones. This critical phase considers a multitude of factors including the architectural layout, insulation levels, window exposure (which influences solar heat gain), and the typical usage patterns of each room. For instance, north-facing rooms will have different heating needs than south-facing ones. Engineers may employ sophisticated Computational Fluid Dynamics (CFD) simulations to model how air will circulate within each proposed zone, ensuring that each area is both comfortable and energy-efficient. This thoughtful design prevents common issues like over-conditioning or under-conditioning, establishing a foundation for optimized climate control.
Thermostat Settings: Homeowners interact with the system by setting their desired temperature for each individual zone using dedicated thermostats. These aren’t just basic controls; modern thermostats often include advanced functionalities such as programmable schedules (allowing for different temperatures at various times of day), geofencing (which adjusts settings based on occupants’ proximity to the home), and even AI-driven controls that learn personal preferences over time. This empowers residents to tailor their comfort precisely, ensuring that bedrooms are cool for sleeping, while living areas are warm during waking hours, all managed with intuitive interfaces.
Central Control Unit: Serving as the operational nerve center, the central control unit continuously gathers real-time data from all zone thermostats and an array of sensors. Based on this aggregated information, it makes intelligent decisions about the system’s operation. This includes adjusting the speed of the main compressor or furnace, modulating fan speeds in air handlers, and most importantly, sending precise commands to the zone dampers. Its role is to prioritize and balance the heating and cooling demands across all zones, ensuring that each area achieves its setpoint while optimizing overall energy use.
Zone Dampers Adjustment: Upon receiving instructions from the central control unit, the motorized zone dampers dynamically adjust their position within the ductwork. If a specific zone, such as a home office, signals a need for more cooling, its damper will open wider to increase the flow of conditioned air. Conversely, if a zone is already at its setpoint or is scheduled to be unoccupied, the damper will restrict or entirely close off airflow. In advanced setups, Variable Refrigerant Flow (VRF) technology might be integrated, particularly in multi-split systems, allowing for precise control over the amount of refrigerant delivered to each indoor unit, further refining temperature management and efficiency.
Zoned Air Distribution: Following the damper adjustments, the conditioned air is then efficiently distributed through the specially designed ductwork to each zone. This system ensures that air is directed precisely where it’s needed, preventing energy waste associated with conditioning unoccupied or already comfortable spaces. The efficiency of this distribution is a cornerstone of the system’s energy-saving capabilities.
Temperature and Environmental Sensors: Beyond just temperature, advanced multi-zone systems often incorporate a network of sensors throughout the home. These sensors might monitor not only ambient temperature but also humidity levels, and even CO2 concentrations. They provide continuous, granular data to the central control unit, enabling it to make real-time, precise adjustments. In some cutting-edge residential applications, wireless sensor networks provide an even more detailed environmental mapping, allowing for highly responsive and adaptive climate control that goes beyond simple temperature regulation, actively enhancing indoor air quality and occupant well-being.
Multi-Zone Ductwork Design: The design of the ductwork in a multi-zone system is a critical engineering challenge. Unlike simpler systems, it must accommodate varying airflow requirements for multiple zones without creating excessive static pressure, noise, or inefficient air distribution. HVAC engineers utilize specialized software to meticulously calculate the optimal layout, size, and balancing mechanisms for the ducts. Factors such as air pressure drop, acoustic considerations, and thermal losses are carefully managed to ensure that each zone receives the correct volume of air at the right temperature, maximizing energy efficiency and ensuring quiet operation across the entire system. This complex design is fundamental to the successful implementation and long-term performance of any multi-zone solution.
Multi-Split HVAC Systems: A Flexible Zoning Solution

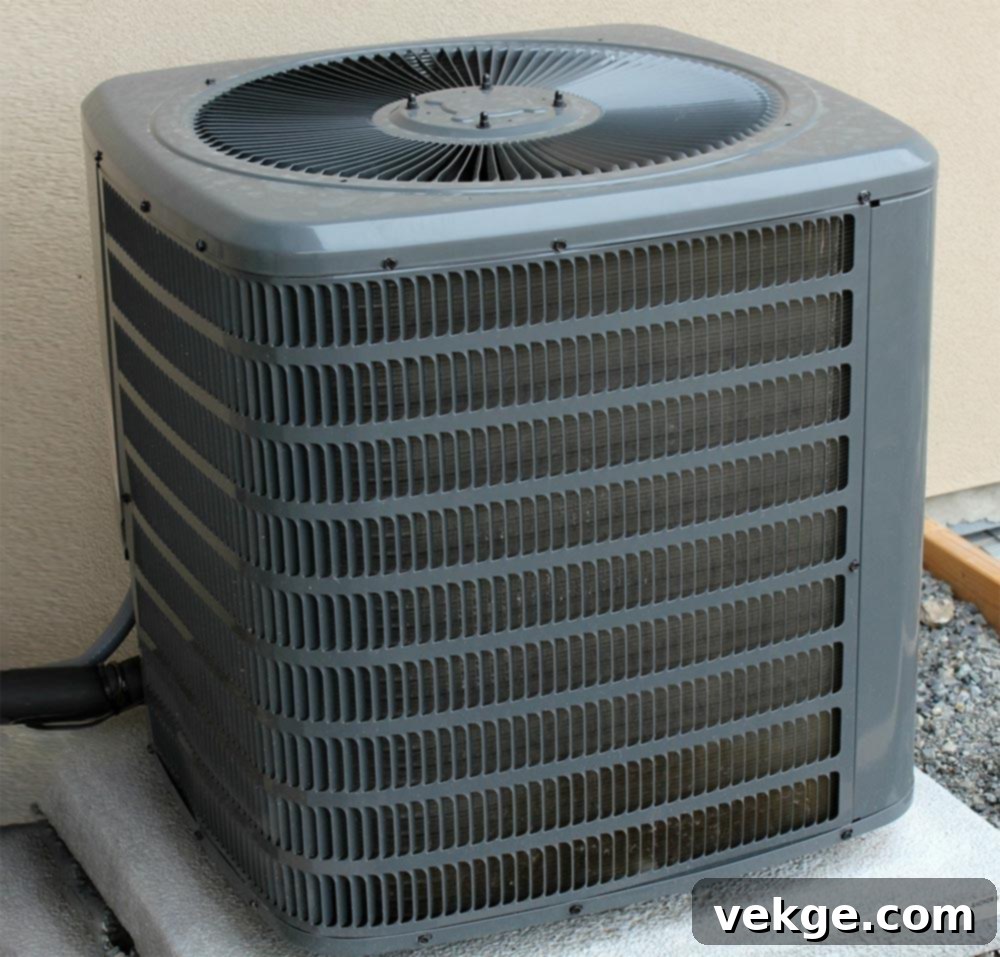

For homes that may not have existing ductwork, or where extreme flexibility in zone control is desired, multi-split HVAC systems offer an excellent and highly efficient solution. These systems are particularly ideal for residences seeking individualized comfort without the extensive installation requirements of traditional ducted systems. A multi-split setup typically consists of a single outdoor condensing unit connected to multiple independent indoor units, each serving a distinct zone within the home. This configuration allows for unparalleled control, as each indoor unit can be operated, started, stopped, and set to a different temperature independently of the others.
Multi-split systems often incorporate cutting-edge features that enhance their appeal. Variable Refrigerant Flow (VRF) technology is a common enhancement, allowing the system to precisely control the flow of refrigerant to each indoor unit, thereby optimizing energy usage and maintaining incredibly stable temperatures. Many also include Energy Recovery Ventilators (ERVs), which improve indoor air quality by exchanging stale indoor air with fresh outdoor air while recovering heat or coolness, minimizing energy loss. Integrated dehumidification systems are another common feature, ensuring not only thermal comfort but also optimal humidity levels, which is crucial for comfort and preventing mold growth. Their modular design and high efficiency make them a preferred choice for residential properties looking for advanced, customizable climate control with a smaller footprint and greater installation flexibility.
Outstanding Benefits of Zoned HVAC Systems
Multi-zone HVAC systems deliver a compelling array of benefits that significantly outweigh those of traditional, single-zone systems, particularly for homeowners prioritizing comfort, efficiency, and sustainability. These systems are an intelligent investment for modern residential living:
- Superior Energy Efficiency: One of the most significant advantages is the drastic reduction in energy consumption. By allowing precise temperature control in different areas, zones can be heated or cooled only when occupied or needed. For example, you can raise the temperature in an unused guest room or reduce cooling in a bedroom during the day, preventing energy waste on conditioning empty spaces. This targeted approach translates directly into substantial savings on monthly utility bills and a reduced carbon footprint for your home.
- Enhanced Comfort and Personalized Climate: Eliminating hot and cold spots is a primary driver for adopting zoning. A multi-zone system ensures consistent temperature control across all areas, allowing occupants to customize their immediate environment. Whether one prefers a cooler bedroom for sleeping and a warmer living room for entertaining, a zoned system accommodates these individual preferences, leading to a much more comfortable and harmonious living experience for everyone in the household.
- Improved Indoor Air Quality (IAQ): Advanced zoning systems can integrate with sophisticated air quality monitoring devices. This allows for targeted ventilation and filtration in specific areas, especially crucial in homes with tight building envelopes or where particular occupants suffer from allergies or respiratory conditions. By managing airflow and filtration zone-by-zone, the system can ensure each area meets desired air quality standards, contributing to a healthier indoor environment.
- Reduced Wear and Tear on Equipment: By only operating at the capacity needed for specific zones, the HVAC equipment (compressors, furnaces, air handlers) runs more efficiently and often less frequently at full power. This optimized operation reduces stress on components, potentially extending the lifespan of your entire HVAC system and leading to fewer maintenance issues and costly repairs over time.
- Increased Property Value: Installing a modern, energy-efficient multi-zone HVAC system is a significant upgrade that adds tangible value to a residential property. It signals to potential buyers that the home is equipped with advanced technology designed for superior comfort and lower operating costs, making it a highly attractive feature in the competitive real estate market.
These comprehensive benefits underscore why multi-zone HVAC systems are becoming an increasingly popular and essential feature in contemporary residential construction and renovation. Check this article before you hire an HVAC business consultant to ensure you’re making informed decisions about your system implementation.
Applications of Multi-Zone HVAC Systems in Residential Housing
The versatility and adaptability of multi-zone HVAC systems make them an ideal solution for a diverse range of residential settings, offering customized comfort that traditional systems simply cannot match. They excel in scenarios where uniform conditioning is inefficient or impractical:
- Single-Family Homes: Even in homes of moderate size, multi-zone systems can dramatically improve comfort. For example, bedrooms can be kept at a cooler temperature for sleeping, while living areas are warmer during the day. Basements, often cooler than upper floors, can be independently heated.
- Large Estates and Sprawling Properties: In extensive homes with numerous rooms and varying occupancy, zoning is indispensable. It allows for the conditioning of only occupied wings or specific areas, leading to massive energy savings compared to heating or cooling the entire property simultaneously.
- Multi-Story Homes: These homes frequently experience significant temperature stratification, with upper floors tending to be much warmer than lower floors, especially in summer. Multi-zone systems are exceptionally effective at managing these temperature differences between floors, ensuring consistent comfort throughout the entire vertical expanse of the home, regardless of sun exposure or insulation variations between levels.
- Homes with Dedicated Spaces: Properties featuring home offices, gyms, media rooms, or guest suites benefit immensely from zoning. These areas often have unique thermal requirements or are used intermittently, making individual control both energy-efficient and highly convenient.
- Homes with Varying Orientations: Rooms facing south will receive more direct sunlight and heat than north-facing rooms. A multi-zone system can account for these differences, providing more cooling to the warmer, sun-exposed areas and less to the cooler ones, maintaining a balanced interior climate.
Zoning Retrofit for Existing Systems
For homeowners with existing HVAC systems who wish to upgrade their comfort and efficiency without the significant expense of a complete system replacement, a zoning retrofit is an excellent and increasingly popular option. This process involves integrating zoning capabilities into your current HVAC setup. It typically entails adding motorized zone dampers into existing ductwork, installing new independent thermostats in each designated zone, and connecting these components to a central zoning control panel that orchestrates their operation.
The success of a zoning retrofit hinges on the expertise of an experienced HVAC contractor. They will conduct a thorough assessment of your home’s unique characteristics, including its layout, the condition and capacity of your existing ductwork, and your specific heating and cooling requirements. Crucially, they will evaluate factors such as air pressure dynamics, existing airflow capabilities, and equipment compatibility to ensure that the retrofit components integrate seamlessly and function efficiently with your current furnace, air conditioner, or heat pump. A well-executed retrofit can significantly improve comfort and energy savings, transforming a single-zone system into a responsive, multi-zone climate control solution tailored to your home’s evolving needs.
The Function of Multi-Zone HVAC Systems in Summary
In conclusion, multi-zone HVAC systems represent a cutting-edge and intelligent solution for achieving personalized comfort and exceptional energy efficiency in residential homes. By strategically dividing a property into distinct zones and deploying advanced control technologies, these systems move beyond the limitations of traditional uniform conditioning. They optimize energy use by delivering heating and cooling precisely where and when it’s needed, drastically improve indoor air quality through targeted ventilation and filtration, and eliminate uncomfortable temperature disparities, ensuring every part of your home maintains ideal conditions. As the demand for smarter, more sustainable, and comfortable living spaces continues to grow, multi-zone HVAC systems are rapidly becoming an indispensable and essential component of modern, high-performance homes, shaping the future of residential climate control.
