Comprehensive Guide to Installing Concrete Stormwater Pits for Effective Water Management

Effective stormwater management is a critical component in safeguarding communities and properties from the potentially devastating effects of storms and floods. At the heart of a robust stormwater system lie concrete stormwater pits, engineered to efficiently collect and channel excess water runoff away from sensitive areas, preventing erosion, property damage, and environmental contamination.

Whether you’re a seasoned builder or a diligent homeowner looking to enhance your property’s resilience, understanding the intricacies of concrete stormwater pit installation is invaluable. This comprehensive guide will walk you through every essential step, from initial planning and site assessment to the crucial post-installation considerations, ensuring your water management system is both effective and enduring.

Understanding Concrete Stormwater Pits and Their Function

A stormwater pit, often referred to as a catch basin or collection pit, is a vital component designed to collect stormwater runoff from impermeable surfaces such as roads, pavements, and roofs. Once collected, the water is then directed through a network of reinforced concrete pipes, which are specifically designed to handle substantial volumes of water and convey it away to designated discharge points, such as natural waterways or larger municipal drainage systems. These pits are typically manufactured from precast concrete, renowned for its strength and durability, and come equipped with “knockouts” or pre-formed openings for seamless pipe installation.

In a natural environment, rainwater is largely absorbed by the soil, replenishing groundwater and supporting vegetation. However, in urbanized areas, where extensive surfaces are covered by concrete, asphalt, and buildings, this natural absorption process is severely hindered. This leads to an increase in stormwater runoff, which, if not properly managed, can result in significant problems. Uncontrolled runoff contributes to urban flooding, overburdens sewage systems, and carries pollutants into rivers and oceans, impacting aquatic ecosystems and public health.

Properly designed and installed stormwater pits are therefore essential for mitigating these risks. By strategically placing these pits, rainwater runoff is efficiently intercepted and contained, allowing the connected drainage pipes to transport the water away in a controlled manner. This proactive approach not only prevents localized flooding but also helps protect the structural integrity of buildings, roads, and landscaping, while minimizing the environmental impact of urban development.

Essential Preparations for Stormwater Pit Installation

Like any major construction project, the success and longevity of a stormwater pit installation hinge on thorough preparation. These preliminary steps are crucial for ensuring a smooth, compliant, and ultimately, a long-lasting drainage solution.

1. Detailed Site Assessment and Planning

Before any digging commences, a comprehensive site assessment is paramount. This involves carefully determining the optimal location for the stormwater pit on your property. Key factors to consider include:

Topography: Analyze the natural slope of the land to understand how water naturally flows. Pits should be situated in low-lying areas or at strategic points where runoff naturally converges.
Existing Drainage Systems: Identify the location and capacity of any existing drainage infrastructure, including pipes, culverts, or municipal connections, to ensure proper integration.
Soil Conditions: Understand the soil type and its compaction properties, as this will influence excavation and base preparation. Geotechnical surveys may be necessary for larger projects.
Underground Utilities: Crucially, locate all underground utilities (power, gas, water, communication lines) to prevent accidental damage during excavation. Always contact relevant utility providers before digging.
Local Regulations and Permits: Research and adhere to all local building codes, environmental regulations, and permit requirements for stormwater management. Non-compliance can lead to fines and rework.
Water Volume: Estimate the expected volume of stormwater runoff based on rainfall data, catchment area size, and surface types to ensure the pit and associated pipes are adequately sized.

2. Precise Excavation

Once the optimal location is determined and all necessary permissions are secured, the excavation process can begin. This stage requires precision and adherence to safety protocols:

Marking the Area: Clearly mark the precise dimensions of the pit and the trench lines for connecting pipes.
Digging the Pit: Excavate the allocated area to ensure sufficient room for the stormwater pit and its drainage connections. The depth and width must accommodate the pit’s dimensions, leaving adequate space for backfilling and compaction around it.
Safety Measures: Implement all necessary safety measures, including shoring trenches to prevent collapse, providing safe access and egress, and ensuring appropriate personal protective equipment (PPE) is used.
Spoil Management: Plan for the efficient removal and disposal of excavated soil (spoil) in an environmentally responsible manner.

Concrete Stormwater Pit Installation Process

With the site meticulously prepared, the actual installation of the concrete stormwater pit can commence. This is a multi-step process that demands accuracy and careful execution to ensure the system’s long-term functionality and structural integrity.

1. Robust Base Preparation

A stable and level base is fundamental to the durability of the stormwater pit. Without a proper foundation, the pit can settle unevenly, leading to structural stress and potential failure:

Leveling: Ensure the excavated base is perfectly level to provide uniform support for the pit.
Compaction: Compact the soil at the base to the desired density. This often involves laying a layer of crushed rock or gravel, typically 100-150mm deep, and compacting it thoroughly with a plate compactor. This creates a firm, stable, and well-draining foundation.
Drainage Layer: The gravel layer also acts as a drainage bed, preventing hydrostatic pressure buildup under the pit.

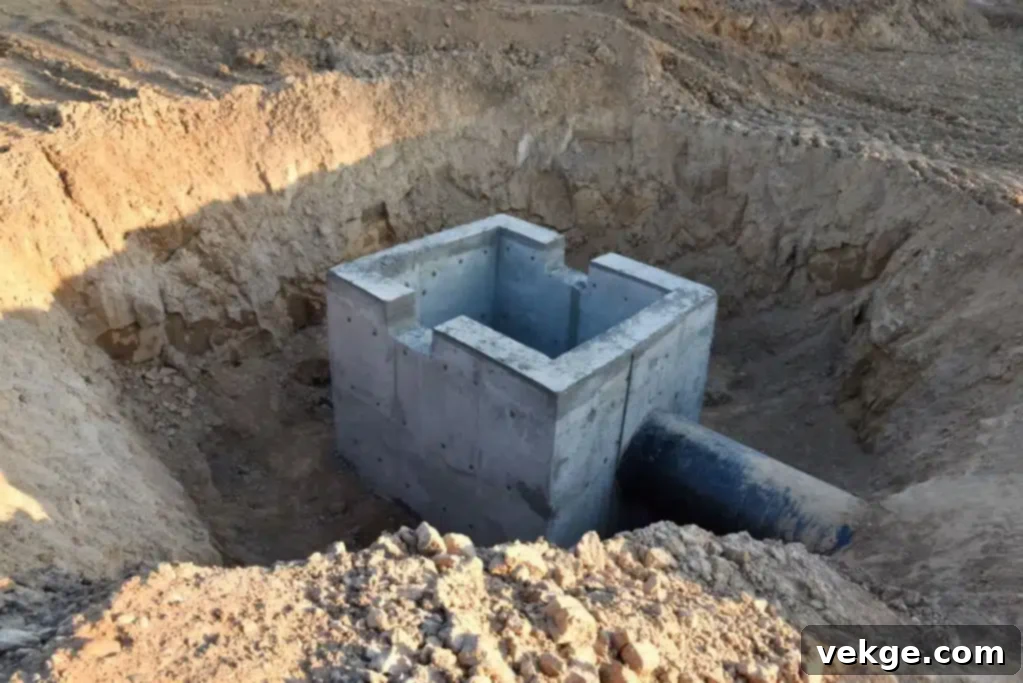

2. Precise Pit Placement

The precast concrete pit is a heavy component, requiring careful handling and precise positioning:

Lifting Equipment: Utilize appropriate lifting equipment, such as excavators with lifting slings, to carefully lower the precast concrete pit into the prepared excavation.
Alignment: Meticulously align the pit with the planned drainage system connections, ensuring that the “knockouts” or pre-formed pipe entry points are correctly oriented with the incoming and outgoing pipe runs.
Leveling: Use a spirit level to verify that the pit sits perfectly flat and level on its compacted base. Adjustments should be made as necessary to prevent future structural issues.

3. Connection and Sealing of Pipes

Establishing secure and watertight connections between the stormwater pit and the drainage pipes is paramount to preventing leaks and maintaining system efficiency:

Pipe Installation: Connect the storm drain pipes to the pre-formed openings in the pit. Ensure the pipes have the correct gradient for efficient water flow.
Sealing Methods: Employ appropriate sealing methods to create airtight and leak-proof connections. This typically involves using rubber gaskets, specialized sealants, or non-shrink grout around the pipe penetrations. Proper sealing prevents water from escaping the system and undermining the surrounding soil, which could lead to sinkholes or structural damage.
Joint Integrity: Verify that all pipe joints are securely fitted and sealed according to manufacturer specifications and industry best practices.

4. Backfilling and Compaction

Once the pit and pipe connections are secure, the excavation must be carefully backfilled to stabilize the structure and integrate it with the surrounding ground:

Layered Backfill: Backfill the material around the pit in layers, typically 150-300mm increments.
Compaction: Compact each layer thoroughly using a compactor or hand tamper. Proper compaction is crucial to prevent future settlement, which could lead to cracks in the pit, damage to pipes, or uneven ground surfaces.
Material Selection: Use suitable backfill material, often excavated soil free of large rocks or debris, or engineered fill if required.

Post-Installation Considerations for Long-Term Performance

The effectiveness and durability of your newly installed concrete stormwater pit extend beyond the completion of the installation. Ongoing care and attention are vital to ensuring its consistent performance and maximizing its lifespan.

1. Regular Maintenance and Cleaning

Routine maintenance is critical for keeping the stormwater management system clear of obstructions and functioning optimally. This preventative measure guarantees the continuous, unimpeded performance of the system:

Debris Removal: Regularly inspect and remove accumulated debris such as leaves, sediment, plastic bags, and other foreign objects from the pit and grates. Blockages can severely impede water flow and lead to overflow during heavy rainfall.
Grates and Screens: Ensure grates and screens are clear and free from blockages. These components are designed to filter out larger debris, protecting the pipe network.
Sediment Build-up: Over time, sediment can accumulate at the bottom of the pit. Schedule periodic cleaning to remove this sediment, which can reduce the pit’s capacity and interfere with drainage. High-pressure washing or vacuum trucks may be used for this purpose.
Vegetation Control: Keep surrounding vegetation trimmed to prevent roots from infiltrating the pit or pipes and causing damage.

2. Periodic Inspection and Timely Repairs

Regular inspections are essential for identifying any signs of wear, damage, or potential issues before they escalate into major problems. Proactive repairs can save significant costs and prevent system failure:

Visual Inspections: Periodically check the pit structure for cracks, spalling, or any signs of deterioration in the concrete. Also, inspect pipe connections for signs of leakage or shifting.
Water Flow Test: After heavy rainfall, observe how effectively the pit collects and drains water. Ponding around the pit or slow drainage indicates a potential issue.
Structural Integrity: Look for any signs of ground settlement around the pit, which could indicate improper backfilling or underlying issues.
Addressing Issues Promptly: Any detected problems, such as minor cracks, damaged seals, or displaced grates, should be addressed immediately. Timely repairs can prevent water seepage, erosion, and further structural damage to the pit and surrounding infrastructure. For significant issues, it’s advisable to consult with a qualified professional.

Key Benefits of Utilizing Precast Concrete Stormwater Pits

Choosing precast concrete stormwater pits offers a multitude of advantages over traditional cast-in-situ methods, providing installers and property owners with a superior, more efficient, and durable solution for stormwater management.

Faster Construction and Installation: Precast production significantly reduces construction time on-site, often by as much as 75% compared to labor-intensive cast-in-situ processes. This translates to quicker project completion, reduced disruption, and earlier system commissioning.
High-Quality and Durable Product: Manufactured in controlled factory environments using advanced molds and assembly methods, precast concrete pits boast superior quality control. This results in a consistently high-strength, dense, and durable product that is less susceptible to environmental degradation and extends the lifespan of the stormwater system.
Cost Benefits: The efficiencies of precast manufacturing lead to reduced costs associated with labor, temporary formwork (props), and the need for extensive on-site material storage. This streamlines the construction budget and provides a more predictable expenditure.
Custom-Made to Specifications: Precast concrete pits can be fabricated with precise heights, specific pipe penetrations, and custom designs to perfectly suit the unique specifications of your stormwater network design, ensuring optimal integration and performance.
Extensive Range of Sizes: Available in a wide array of sizes and configurations, precast pits can adapt to the diverse requirements of stormwater networks dictated by local authorities and specific project demands, from residential to large-scale commercial applications.
Comprehensive Support: Reputable suppliers often provide comprehensive installation manuals and can offer a team of experienced professionals to lend hands-on support and expert guidance on-site, ensuring a smooth and correct installation.
Highly Versatile: Precast stormwater pits are incredibly versatile. They are often completely interchangeable with various curb inlet systems, stormwater pipes, and other drainage products. Custom-ordered pits can also serve as junction pits for utility lines, including power, gas, and telecommunications, providing a multi-functional solution.
In-house Design Capability: Many precast manufacturers possess in-house design capabilities, utilizing purpose-built software to produce detailed manufacturing and installation drawings, which streamlines the design-to-installation process.
Reduced Environmental Impact: The use of precast concrete contributes to a reduced environmental footprint during construction. Manufacturing in a controlled environment leads to less waste, lower noise pollution, and reduced debris generation on the construction site.
Trafficable Design: Many precast stormwater pits are designed to withstand significant traffic loading, such as SM 1600 (and often additional load classes), in compliance with stringent standards like the Australian Standard for Bridge Design AS 5100.5. This makes them suitable for installation in high-traffic areas like roadways and parking lots without compromising structural integrity.

Build Resilience Through Robust Concrete Pits

Embracing the process of installing concrete stormwater pits is an investment in the resilience and longevity of your property and the surrounding environment. It demands a thorough understanding of the fundamentals, meticulous planning, and a rigorous commitment to precise execution. By diligently following the preparatory steps, installation procedures, and post-installation maintenance recommended in this guide, you can establish an effective and durable stormwater management system.

A well-implemented concrete stormwater pit system not only mitigates the risks of flooding and erosion but also plays a crucial role in protecting local ecosystems from pollution. It stands as a testament to responsible development and a commitment to safeguarding our infrastructure against the challenges posed by increasingly unpredictable weather patterns. Ensure your property is protected for years to come with a professionally installed and maintained concrete stormwater drainage solution.
